Step #4 - Put In New Rivets

From the back side of the Blevins buckle (the side without the metal posts) push in new rivets.

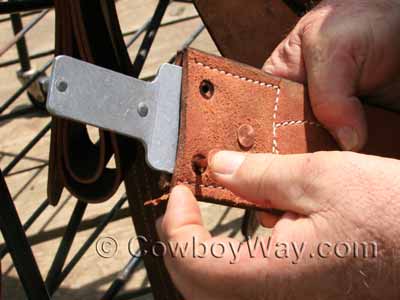

Insert new copper rivets into the stirrup leather and Blevins buckle

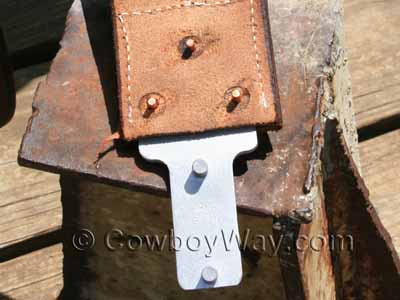

Turn the stirrup leather over. You should now see the new rivets sticking up through the stirrup leather.

Place burrs over the posts of the rivets.

Place one of the holes in the copper rivet and burr setter over one of the posts, then hit the copper rivet and burr setter with a hammer. This will drive the burr down to the bottom of the post. Do this to all of the rivets.

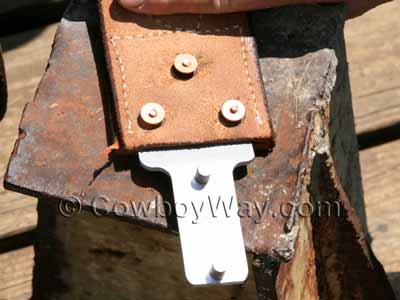

In the photo below we have already done the rivet on the lower left, we're in the process of doing the one one the lower right, and we still need to do the one at the top.

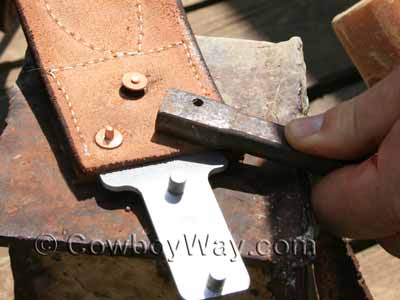

Using the copper rivet and burr setter tool to drive the burrs down to the bottom of the posts

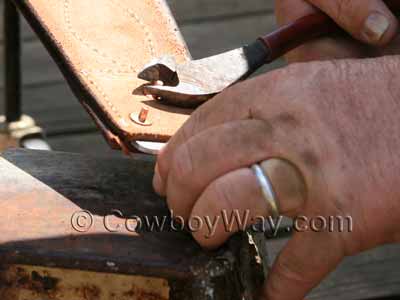

After the burrs have been driven down to the bottom of the posts, look closely at how much post is sticking up above the burr. You only want approximately 1/8" of post. If the posts are much longer than that, snip them off to the proper length.

Now place the concave depression in the end of the copper rivet and burr setter tool over one of the posts and hit the tool solidly with a hammer. This is called "peening." Peening will evenly depress, or peen, the end of the post down over the burr, securing the rivet. Strike the tool several times, moving it slightly from side to side each time. Do this for all of the rivets.

When finished, you can also gently hit the newly peened ends directly with a hammer if you think you need to flatten them further. Do NOT overly flatten the peened ends. You want them nicely domed, not flush with the burrs.

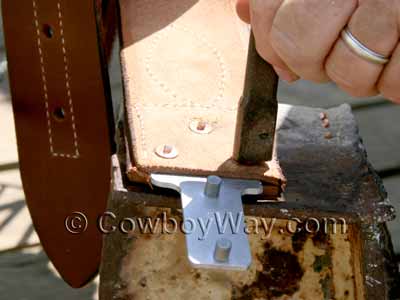

Use the rivet and burr setter tool and a hammer to peen the rivets

Do The Other Side And You're Done

You're now done with one side of your saddle. Move to the other side and repeat the same steps to turn that Blevins buckle over, too.

Put your stirrups back onto your saddle. Now that your Blevins buckles have been turned over notice that any excess stirrup leather curls up on the inside of the stirrup fender instead of hanging down in front of your stirrup.

NOTE: If your stirrups were trained to turn outward from the sides of your horse before you turned your Blevins buckles over, turning your Blevins buckles may "un-train" them. Be prepared to turn your stirrups before you're ready to ride again.
